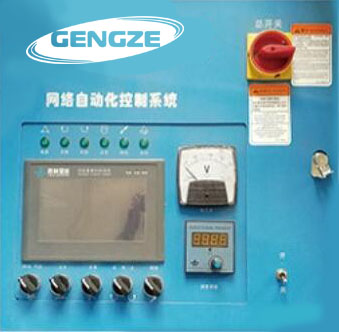

standard main control panel

1. Operation status display and real-time monitoring

2. Failure alarm

4.over low water pressure causes shut down of  the system and water pump automatically

5. The water ticket can be issued automatically when the system  working

6. Digital display percentage table regulates the operation walking speed

7. Display failure without network environment

8. The machine can stop automatically if the voltage is too low or too high

9. The equipment has automatic forward and backward control functions

10. Lightning arresters installed to protect against lightning strikes

11.  Below 4 ℃ temperature switch equipment automatic shutdown protection

smart control pannel

1. with all function of  standard control pannel

2. English version should be LCD panel display, thin film keyboard input

3. Memory function of irrigation speed, rainfall, number of cycles, time, etc

4. Functions of small agricultural climate stations  connected

5. Accessable wind speed, rainfall and soil dry temperature sensors

6. The SMS alarm function can be used when the machine stops

7.  to Control diesel generator and fertilizer and drug metering pump

8. Encoder Angle control is adopted for sector irrigation, and the precision can reach 0.1 degree

9. Operation speed control, irrigation setting, cantilever control, nozzle and end gun start delay control, electric valve control, etc

1.GPS  system

GPS accurates position, grasps the machine movement condition

2.Rainwater sensor

Statistical rainfall

3.Anti-theft sensor

Monitor the machine

4.Wireless controller for water pump

Remote operated pump

5.Weather sensors

Statistics of air temperature and humidity, wind speed and direction

6.Soil sensors

Statistical soil temperature and humidity, monitoring crop root growth

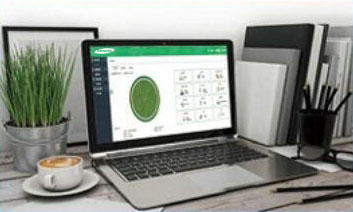

7.Intelligent network control can monitor the irrigation time and cycle number of sprinkler

8.Intelligent network control can monitor  irrigation quantity

9.Intelligent network control can monitor the power consumption of the system

10.summarize and sort out all relevant data in user end

11. Fault real-time alarm

12.Batch management and operation of equipment

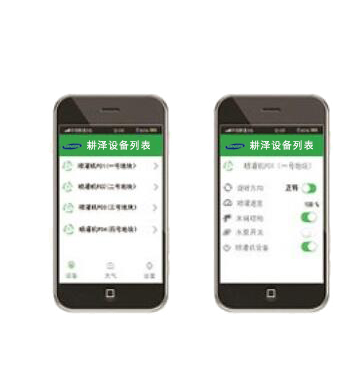

Customize the point-to-point mobile phone APP control system

The irrigation machine  can be operated, stopped, forward and reverse by using the App software.

Even if there is no network environment can also implement remote operation ,it also can control 10 and more than 10 irrigation machine  at the same time.
